Silicon carbide MOSFETs, with their advantages of low on-state resistance, high switching speed, and high-temperature tolerance, enable fast charging in DC charging stations. We recommend using VBsemi's silicon carbide MOS products, which offer high voltage, high frequency, and high-temperature resistance, leading to smaller product designs and improved efficiency.

Abstract generated by the author through intelligent technology

Silicon carbide MOS is a new type of power MOSFET, characterized by low on-state resistance, high switching speed, and high-temperature tolerance, making it widely used in DC charging stations. Today, we will discuss the application analysis of silicon carbide MOS in DC charging stations.

First, let's understand DC charging stations.

DC charging stations, also known as "fast charging," are abbreviated forms of new energy vehicle DC charging stations. They are generally connected to the AC power grid and serve as a power supplement for non-vehicle electric vehicles, functioning as a power control device for DC power supplies.

Its working principle can be explained in four parts:

1. The DC charging station converts AC power into DC power and delivers it to the electric vehicle's battery.

2. The transformer in the charging station converts low-voltage AC power into high-voltage AC power.

3. The AC power is rectified into DC power and regulated by the charging controller to adjust the voltage and current.

4. The charging controller delivers the DC power to the electric vehicle's battery until it is fully charged.

Now that we understand the working principle of DC charging stations, let's discuss the application characteristics of silicon carbide MOS in three aspects:

1. Conduction characteristics: Silicon carbide MOS has a small on-state resistance, which can be used to control the current in DC charging stations, enabling fast charging.

2. Switching characteristics: Silicon carbide MOS has a fast switching speed, which can be used to control the voltage in DC charging stations, enabling fast charging.

3. Temperature characteristics: Silicon carbide MOS has excellent temperature characteristics, which are crucial in DC charging stations due to the large amount of heat generated during charging.

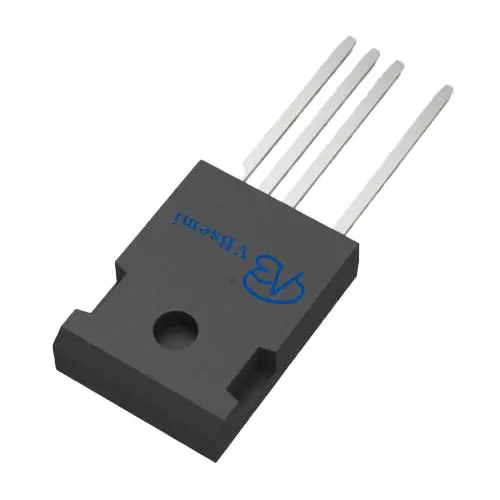

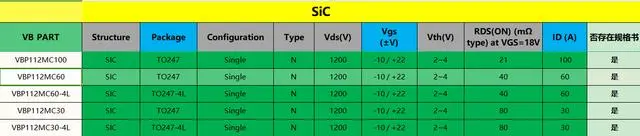

We recommend VBsemi's silicon carbide MOS products, which can be efficiently and effectively applied in DC charging station applications, offering advantages such as high voltage, high frequency, and high-temperature resistance compared to traditional silicon (Si), enabling them to withstand higher currents and voltages, resulting in smaller product designs and improved efficiency.
