Definition

Motor drive refers to the process of controlling the operation and speed of a motor by controlling the current and voltage. Common motor drive methods include DC motor drive, AC motor drive, and stepper motor drive.

MOSFETs have characteristics such as low on-resistance, high switching speed, and low drive energy consumption. Since DC motor drives typically require precise control of motor speed and direction, MOSFETs play an important role in motor drives.

Roles and Functions of MOSFETs in Motor Drives

Switching Control: MOSFETs are used as switch components to control the on-off state of the motor. By adjusting the voltage and current of the MOSFET, the operation state of the motor, including start, stop, accelerate, and decelerate, can be precisely controlled.

Voltage Regulation: MOSFETs can be used as power switches to control the power supply to the motor. By controlling the conduction and cutoff of the MOSFET, the voltage of the motor can be adjusted, thereby achieving speed and torque control of the motor.

Current Protection: MOSFETs can also be used for current protection in motor drives. By monitoring the current of the motor and the temperature of the MOSFET, overload or overheating of the motor and MOSFET can be detected in time to protect them from damage.

Energy-saving Performance: MOSFETs have low switching losses and high efficiency, which can significantly improve the energy efficiency of motor drive systems. Compared to traditional switching elements, MOSFETs have faster switching speeds and lower on-resistance, reducing energy waste.

Applications of MOSFETs in Different Types of Motor Drives

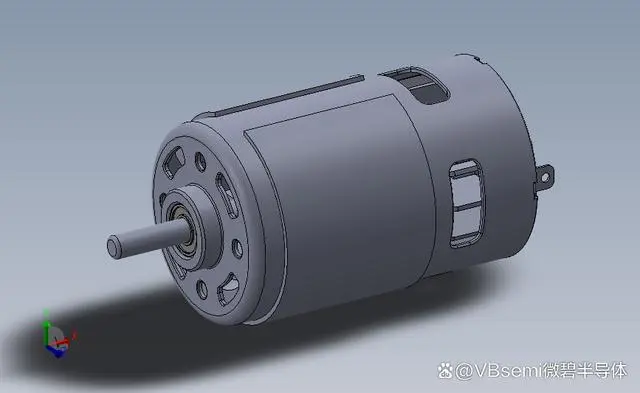

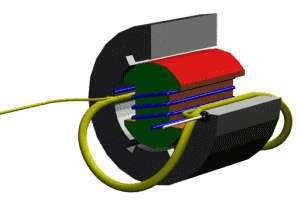

DC Motor Drive: DC motor drive is one of the most common application areas. MOSFETs can be used as power switches for DC motors. By controlling the conduction and cutoff states of the MOSFET, forward and reverse rotation, speed adjustment, and stop of the motor can be achieved. Due to the fast switching speed and low on-resistance of MOSFETs, high efficiency and precise motor control can be provided.

AC Motor Drive: In AC motor drives, MOSFETs are typically used to achieve variable frequency drives. By converting AC power into DC power and then inverting it through MOSFETs, adjustable frequency and amplitude AC power can be obtained to achieve precise control of AC motors. The high switching speed and low on-resistance of MOSFETs provide efficient energy conversion and frequency regulation.

Stepper Motor Drive: Stepper motor drive is a precise control method used in applications that require precise position control. By controlling the conduction and cutoff of MOSFETs, the stepping angle and rotation direction of the stepper motor can be precisely controlled. The high switching speed and low on-resistance of MOSFETs make stepper motor drives highly precise and fast.

Conclusion

In the field of motor drive applications, MOSFETs can provide efficient, precise, and reliable power output to meet the requirements of different application scenarios. With the continuous development of motor drive technology, further optimization and innovation of MOSFETs will bring more application possibilities and development space to the motor drive field.

Note: The information provided in this article is for reference only. Readers should carefully evaluate and follow relevant technical specifications and guidelines in actual applications. Thank you for your attention and support!
