"Is the power switch circuit composed of a transistor and MOSFET always an NPN and PMOS combination? Can a PNP and NMOS combination be used?" A netizen asked VBsemi this question. First of all, we would like to thank this netizen for their trust and inquiry. Today, we will explain some of the advantages of the combinations between MOSFETs and transistors.

(Partial information from the internet, please discern carefully)

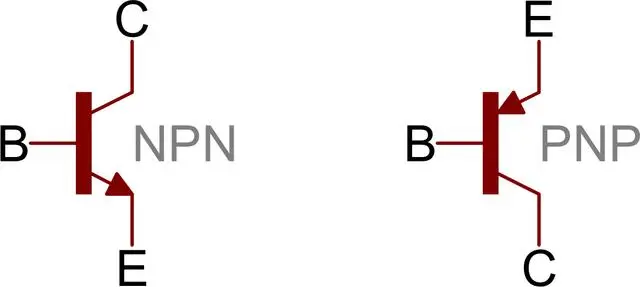

In electronic circuits, the power switch circuit is a common configuration used to control the power switch operation (usually composed of a transistor and a MOSFET). However, the combination of transistor and MOSFET is not limited to NPN and PMOS; in fact, PNP and NMOS can also be used.

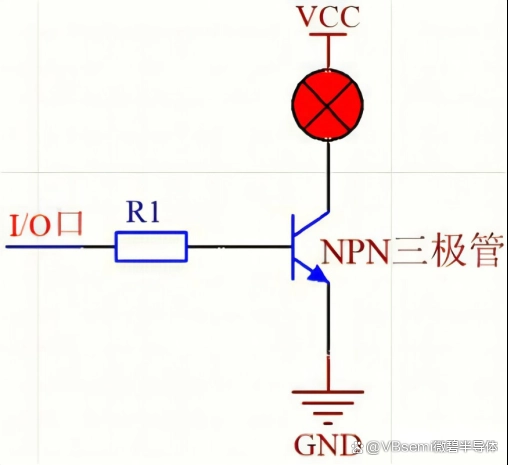

In some power switch circuits, the combination of NPN and PMOS is quite common. The NPN transistor is used to control the base current, while the PMOS is used to control the high voltage or high power load. The NPN transistor is used for low voltage and low power control signals, while the PMOS is used for high voltage and high power loads.

This combination is suitable for applications that require higher voltage and power:

Current amplification capability: NPN transistors have a higher current amplification capability, providing a stable control signal while also being able to withstand higher current loads.

High-voltage control capability: PMOS, as a power switch component, is suitable for high-voltage power switch circuits and can withstand higher voltages.

Low power consumption: The current amplification effect between NPN and PMOS allows them to complete power switch operations at lower power, reducing power consumption.

Although the combination of NPN and PMOS is widely used in power switch circuits, it does not mean that the combination of PNP and NMOS is not feasible.

PNP and NMOS, this combination is suitable for applications that require negative voltage supply, where the PNP transistor is used for negative voltage supply and the NMOS is used for control signals. In some special applications, such as negative power supply circuits and power inverters, this combination is often used.

Low-voltage control capability: The combination of PNP and NMOS can achieve switch operations under low-voltage conditions, suitable for low-voltage power switch circuits.

Fast switch speed: NMOS has a fast switch speed, which can achieve fast switch operations, suitable for high-frequency applications.

Low cost: The combination of PNP and NMOS is lower in cost compared to NPN and PMOS, as PMOS is more expensive than NMOS. This is an advantage for some cost-sensitive applications.

However, the combination of PNP and NMOS faces some challenges.

One major challenge is its level conversion problem, as the voltage polarity of NPN and NMOS is opposite, requiring level conversion to achieve correct switch operation (this can be solved by using level conversion circuits or drivers).

In addition to the combinations of NPN and PMOS and PNP and NMOS, there are also other possible combinations: NPN and NMOS, PNP and PMOS. This combination is suitable for special applications, such as those requiring high-speed switching and low power consumption.

Disclaimer: The information provided in this article is for reference only. Readers must carefully evaluate and follow relevant technical specifications and guidelines in actual applications. Thank you for your attention and support!
