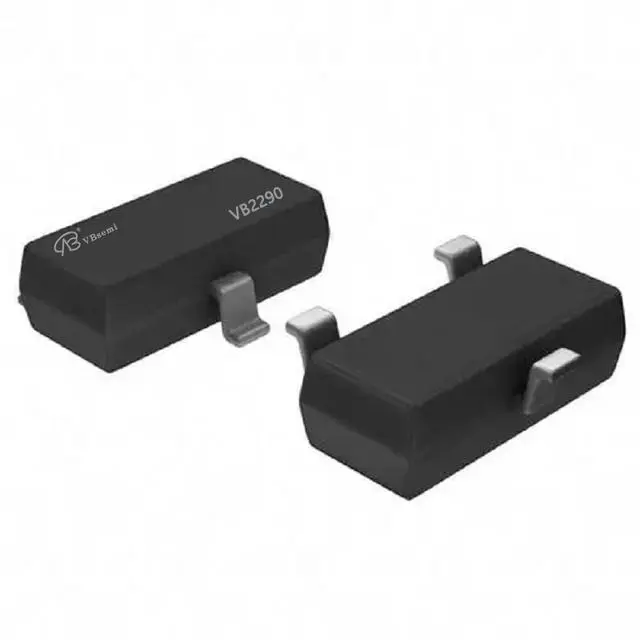

Product 1:

Name: FDN306P-NL

Silkscreen model: VB2290

A P-channel MOSFET

Package: SOT23-3

Brand: VBsemi

Parameter description:

Maximum voltage: -20V

Maximum current: -4A

RDS(ON) at 4.5V: 57mΩ

RDS(ON) at 2.5V: 83mΩ

Threshold voltage: -0.81V

Application areas:

Power management module: used for power switches to achieve efficient energy distribution.

DC-DC conversion module: provides efficient energy conversion in DC-DC converters.

Battery management module: used for battery charging and discharging control to extend battery life.

Advantages and disadvantages:

The FDN306P-NL's low on-state resistance and excellent current carrying capacity make it perform exceptionally well in various low-voltage, high-efficiency circuit designs, suitable for low-voltage high-efficiency applications. However, it may not be suitable for high-voltage environments. Its on-state resistance is relatively low, suitable for medium to low power circuit designs. However, in high-voltage and high-current applications, it may have some efficiency disadvantages.

Product 2:

Name: IRFR9120NTRPBF

Silkscreen model: VB1240

A P-channel MOSFET

Package: TO252

Brand: VBsemi

Parameter description:

Maximum voltage: -100V

Maximum current: -10A

RDS(ON) at 10V: 188mΩ

RDS(ON) at 4.5V: 195mΩ

Threshold voltage: -1.77V

Application areas:

Power switch module: achieves efficient energy conversion and distribution in high-voltage power management.

High-power DC-DC conversion module: used in high-power DC-DC converters, providing efficient energy conversion.

High-voltage motor drive: suitable for high-voltage motor drives to ensure stable driving performance.

Advantages and disadvantages:

IRFR9120NTRPBF is widely used in high-voltage, high-power circuit designs, suitable for high-voltage high-power applications, but may not be as efficient as other devices in low-voltage environments. Its on-state resistance is relatively high, suitable for applications with high power requirements. However, in low-power and low-voltage applications, there may be some efficiency disadvantages.

Product 3:

Name: SI2333DS-T1-GE3

Silkscreen model: VB2290

A P-channel MOSFET

Package: SOT23-3

Brand: VBsemi

Parameter description:

Maximum voltage: -20V

Maximum current: -4A

RDS(ON) at 4.5V: 57mΩ

RDS(ON) at 2.5V: 83mΩ

Threshold voltage: -0.81V

Application areas:

This device can play a key role in different modules

Power management module: used for power switches to achieve efficient energy distribution.

DC-DC conversion module: provides efficient energy conversion in DC-DC converters.

Battery management module: used for battery charging and discharging control to extend battery life.

SI2333DS-T1-GE3 is widely used in power management, DC-DC conversion, battery management, and other areas requiring high-efficiency P-channel MOSFET switches.

Product 4:

Name: IRLML5203TRPBF

Silkscreen model: VB1240

A P-channel MOSFET

Package: SOT23-3

Brand: VBsemi

Parameter description:

Maximum voltage: -30V

Maximum current: -5.6A

RDS(ON) at 10V: 47mΩ

RDS(ON) at 4.5V: 56mΩ

Threshold voltage: -1V

Application introduction:

Power switch module: achieves efficient energy conversion and distribution in high-voltage power management.

High-power DC-DC conversion module: used in high-power DC-DC converters, providing efficient energy conversion.

High-voltage motor drive: suitable for high-voltage motor drives to ensure stable driving performance.

IRLML5203TRPBF is widely used in high-voltage, high-power circuit designs.

Differences and advantages and disadvantages between Products 3 and 4:

SI2333DS-T1-GE3 and IRLML5203TRPBF are both P-channel MOSFETs, but they have the following differences:

Voltage capability: IRLML5203TRPBF is suitable for higher -30V voltage environments, suitable for a wider range of high-voltage applications.

Current capability: IRLML5203TRPBF has a higher -5.6A current carrying capacity, suitable for higher power applications.

On-state resistance: IRLML5203TRPBF has lower on-state resistance at 10V and 4.5V, providing lower energy consumption and higher efficiency.

Threshold voltage: SI2333DS-T1-GE3 has a lower threshold voltage and may perform better in some low-voltage scenarios.

Overall, the choice depends on the application's voltage, current, and efficiency requirements.
