MOSFET, as one of the most commonly used devices in circuit design, directly affects the performance and reliability of the circuit. This article will detail seven factors to consider when selecting a MOSFET, helping engineers quickly identify a suitable MOSFET.

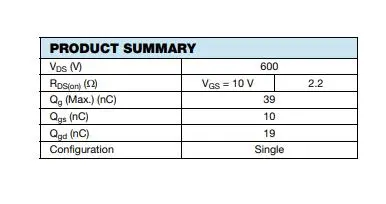

Power Requirement: Consider the application's power needs to determine the MOSFET's voltage tolerance and maximum current. Choose a high-power MOSFET for high power requirements and a low-power MOSFET for lower power needs, balancing actual requirements and cost.
Switching Speed: The MOSFET's switching speed is crucial for circuit performance. Select MOSFETs with suitable recovery, turn-on, and turn-off times based on the application's speed requirements. Faster switching speeds come at a higher price.
Temperature: The maximum operating temperature of the MOSFET should match the application's temperature requirements. Select high-temperature-resistant MOSFETs for hot environments to prevent overheating and damage.
Load Type: Choose the MOSFET based on the application's load type. For example, resistive loads require high-current MOSFETs, while capacitive loads require high-speed MOSFETs. The characteristics of MOSFETs vary depending on the load type.

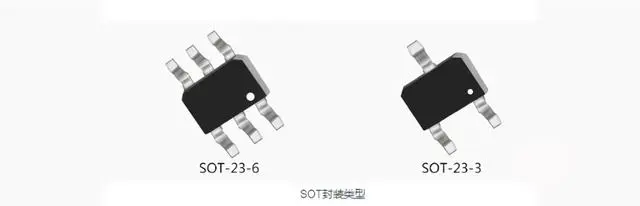

Package Type: MOSFETs come in two package types: through-hole and surface-mount. Consider the layout and space requirements of the circuit board when selecting the package type. Surface-mount MOSFETs are suitable for space-constrained boards.

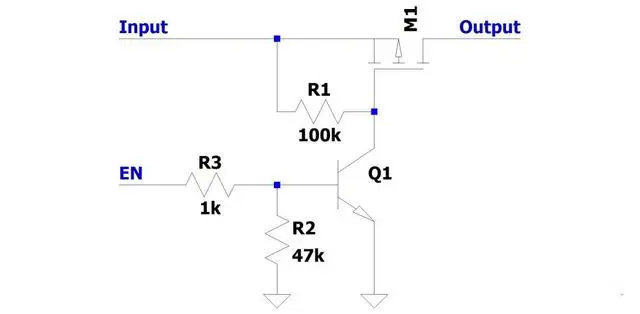

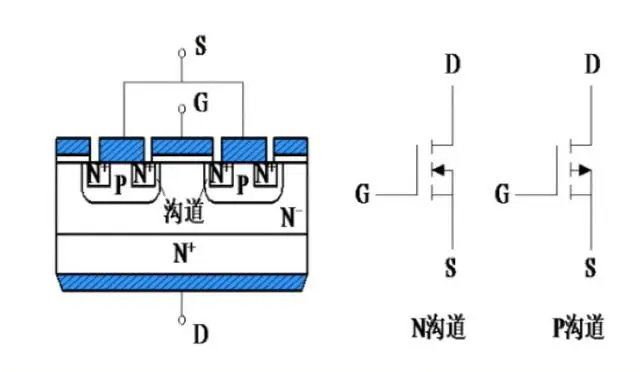

Channel Type: MOSFETs come in two channel types: n-type and p-type. Select the channel type based on the circuit requirements. For controlling positive voltage, choose n-type MOSFETs; for controlling negative voltage, choose p-type MOSFETs.
Brand and Price: Consider the brand and price when selecting a MOSFET. Different brands offer MOSFETs with varying performance, reliability, and prices. Choose a MOSFET that offers the best balance of performance and price.
Currently, some of the domestically high-cost-effective manufacturers include Ansi Semiconductor, VBsemi, Changjing Technology, and Hua Run Microelectronics, among others, listed in no particular order, for reference only.
In conclusion, choosing the right MOSFET requires consideration from multiple aspects. This article details seven factors to consider when selecting a MOSFET, helping you quickly identify a suitable MOSFET.
Disclaimer: The above article content is compiled from the internet. If there are any copyright issues, please contact us immediately. Feel free to leave a comment in the comment section for discussion!
