TDM2301SAC-TRL-VB Silkscreen: VB2290 Brand: VBsemi Parameters: SOT23; P—Channel, -20V; -4A; RDS(ON)=57mΩ@VGS=4.5V, VGS=12V; Vth=-0.81V Package: SOT23

Detailed parameter description:
- Model: TDM2301SAC-TRL-VB
- Silkscreen: VB2290
- Brand: VBsemi
- Parameters:

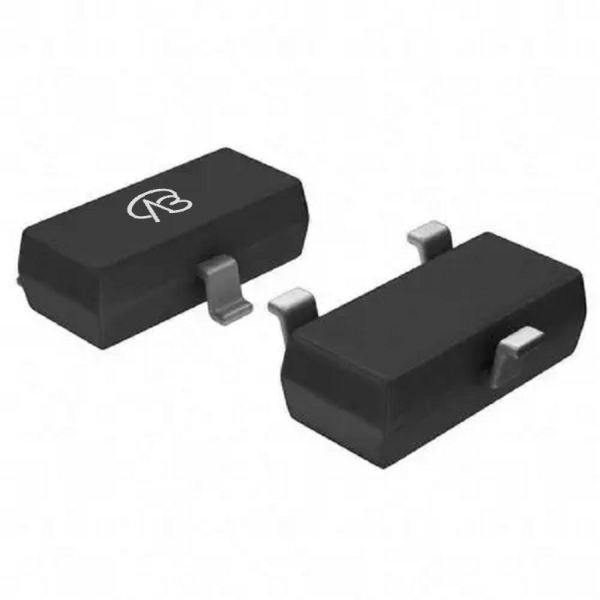

- Package type: SOT23
- Channel type: P—Channel
- Rated voltage: -20V
- Rated current: -4A
- On resistance: 57mΩ @ VGS=4.5V, VGS=12V
- Threshold voltage: -0.81V

Application introduction:
TDM2301SAC-TRL-VB is a P-Channel field effect transistor suitable for SOT23 package. Its characteristics include high load voltage and large current, suitable for a variety of circuit and module applications. Due to its low threshold voltage and high performance, this device is often used in electronic devices that require high performance and low power consumption, such as power amplifiers, power management modules, etc.

Example:
TDM2301SAC-TRL-VB can be widely used in portable electronic products, power inverters, automotive electronics and other fields. In power management modules, it can be used to design high-performance, high-efficiency switching power supplies, as well as other applications that require current and voltage regulation.
